2011 Bridgeport Hardinge GX1000 OSP
The Bridgeport Hardinge GX1000 serves as the primary CNC machining center at Radical Fabrications. Combining advanced Okuma controls, Renishaw probing technology, and a large machining envelope, the GX1000 is well suited for the manufacture of precision components, tooling, fixtures, and production parts across a variety of industries.
Work Envolope & Spindle Capacity
The Bridgeport Hardinge GX1000 features a generous machining envelope with 40 inches of X axis travel, 24 inches of Y axis travel, and 25 inches of Z axis travel, providing ample capacity for the manufacture of tooling, fixtures, workholding systems, and production components. Its 48 inch by 24 inch table supports workpieces weighing up to 2,200 pounds, allowing for the efficient machining of large assemblies and tooling plates. Powered by a 20 horsepower spindle capable of speeds up to 10,000 RPM, the GX1000 delivers the performance and versatility required for both aggressive material removal and precision finishing operations across a wide range of materials.
Tool Capacity & Automation
The Bridgeport Hardinge GX1000 is equipped with a 30 tool automatic tool changer, allowing a wide range of cutting tools to remain readily available for complex machining operations. This expanded tool capacity reduces setup times and minimizes manual intervention by enabling the machine to efficiently transition between roughing, finishing, drilling, tapping, and contouring operations within a single setup. The result is improved productivity, greater process consistency, and enhanced flexibility for prototype, tooling, fixture, and production machining applications.
Renishaw Probing & Tool Measurement
The Bridgeport Hardinge GX1000 is equipped with a Renishaw OMP40-2 spindle probe and Renishaw tool setter, providing advanced setup verification and automated tool measurement capabilities. These systems enable accurate work offset setting, part location verification, and tool length measurement directly within the machine, significantly reducing setup time while improving accuracy and repeatability. By automating critical setup and inspection processes, the Renishaw system helps ensure consistent results across tooling, fixture manufacturing, prototype development, and production machining applications.

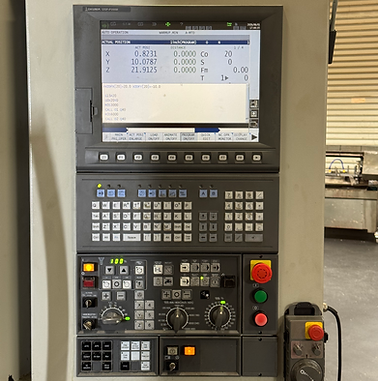

Okuma OSP-P200M-R Controls
The GX1000 is powered by the Okuma OSP-P200M-R control system, an industry proven platform known for its reliability, precision, and ease of operation. The control provides advanced programming and machining capabilities, allowing for efficient execution of complex toolpaths while maintaining exceptional accuracy and repeatability. Combined with the machine's Renishaw probing and tool measurement systems, the OSP-P200M-R enhances setup efficiency, process control, and overall productivity, making it well suited for demanding tooling, fixture, prototype, and production machining applications.
